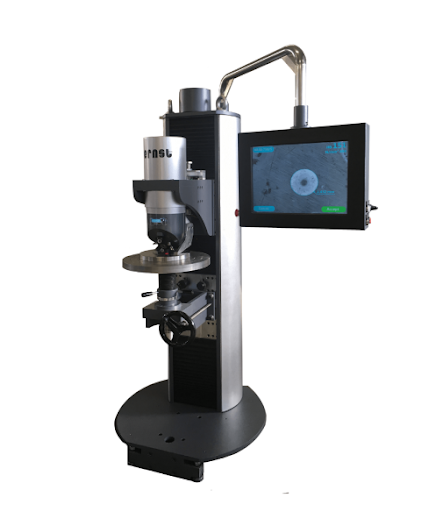

Brinell Harness Tester EAGLE3000

Hardness testing with loads from N 306.5 to N 29420
  • EAGLE 3000 performs hardness testing with loads from N 306.5 to N 29420 (31.25 to 3000 kgf ) according to DIN EN ISO 6506, ASTM E10 for the Brinell test and allows the selection of test loads in a simple and immediate way; during each test the operator can return to the process at any time, either to continue the series of measurements, either to do a specific test or to start a new series. EAGLE 3000 can send data at any time to a printer or via the network. The image of each impression can be stored allowing immediate control of the measurement even long after the protocol has been issued or the data has been distributed over the network. EAGLE 3000 allows you to choose between 4 languages: English, French, German and Italian. It is possible to obtain other languages on request. EAGLE 3000 has been designed to allow maintenance and/or repair operations with extreme speed and simplicity. The high precision of the 45° automatic revolver system for the rotation of the lens-penetrator group guarantees the exact positioning of the lens on the impression and the consequent positioning of the image on the monitor. EAGLE 3000 is equipped with an industrial PC integrated with Windows platform; it has a USB camera of 3 mega pixels. The software allows the fully automatic measurement of all impressions, leaving the operator the freedom to perform the measurement manually.
  • Product Advantages:
    1. Measurement of pieces up to 1200 mm in height - One hardness tester for a wide range of samples.
    2. Fully automatic test cycle with part distance recognition - Offers precision, safety and speed of the entire process.
    3. Measuring head is easily removable from the instrument - Allows on-site calibration and maintenance of the sole test head without the need to return the instrument.
    4. Totally electric instrument with no need of any hydraulic or pneumatic connection - Immediate installation in any environment.
    5. Compliance with the main international standards - Realiability and precision.
